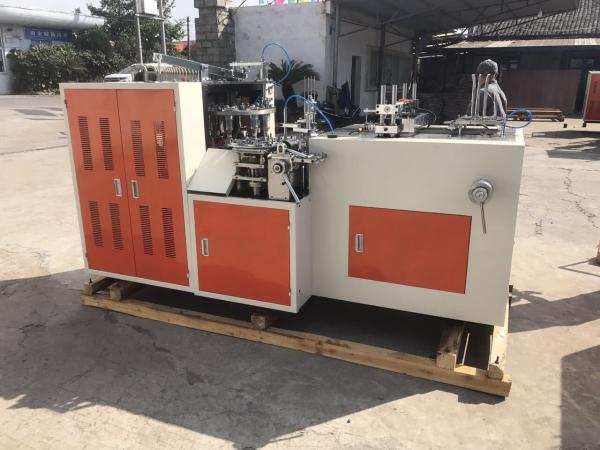

Paper Cup Machine With Single Shaft and Open Cam Systemmake 4-16oz
cups New Model
About the machine:
LBZ – LB4 automatic disposable paper cup forming machine is a
multi-station automatic molding machine, it through the automatic
paper (printed paper),Sealing, filling (roll-up lubrication) and
bottom (from the roll of paper automatic blanking bottom), heating,
knurling (bottom sealing), edge and unloading cup collectionSuch as
continuous process, and a photoelectric detection, fault alarm,
counting, etc, with the production process of paper cups. This
equipment is the production of beverage cups,Tea cups, coffee cups,
paper cups, ice cream paper cup, advertising paper cups and market
of li riceses leave or other one-time food of cone type
containerWant to the machine. The machine adopts microcomputer
program control frequency converter, stepless speed regulation.
Automatic control using optical non-contact switch.this machine
have Automatic oiling system.
Model: LBZ – LB4 full-automatic disposable paper cup forming
machine |
Paper material: 150-280 (g) one side PE paper |
Production capacity: 60-70pcs / min |
Voltage: 380 V, 50 HZ |
Total power: 6 KW |
Machine weight: 1600 kg |
Installation dimensions: 2700 x1200 x1700mm; Long * wide * high |
|
Making Paper Cup :
1. Make a decision:
make what size cup? what kind of usage (hot or cold)? what gsm
paper ?
(cup cost against the size and paper gsm; the larger size, the
heavier paper, higher cost)
2. Buy PE coated Paper:
a. Buy single PE or double PE coated paper? (depending on the cup
usage, also the cost).
b. Buy what size paper (sheet-size for cup-wall, roll paper for cup
bottom)?
(after decide the cup size, draw the cup spread fan-design, layout
wall sheet design, you'll know that size of paper should buy).
3. Printing step:
print logo, do by yourself or done in out-serve. By yourself (have
the flexo printing machine); Done in out-serve (let the paper
supplier, or printing company help to finish printing step).
4. Die cutting step:
die cut the paper rolls to to sheets to get cup-fan-wall. By
yourself (have the die cutting machine, with the knife-board help),
Done in out-serve (paper supplier or printing company do the job).
5. Forming Step: Buy Paper cup machines .
a. feed the cutted-printed cup-fan-wall paper to the paper cup
machine,
b. feed the bottom-roll paper to the machine, machine auto make the
cup.
6. Packing: package paper cups in plastic bag, then to cardboard box, etc.
Notes: How many sizes molds available ?
A. paper cup machine has exchangeable mould which is good for most
size of cup.
B. It is best for one machine produce one size paper cup (the molds made based on requirement).
C. If need extra sizes, better the exchange cups have same bottom
diameter and same angle, this is easy and cheap for New Hand
Customers.
